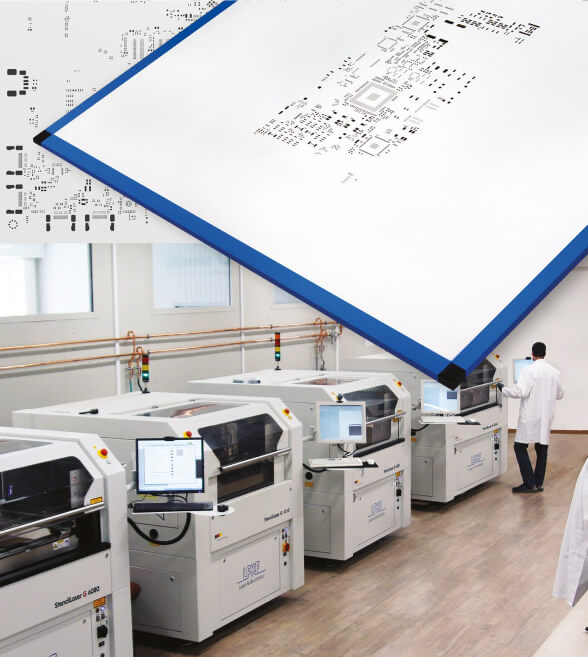

SMT Stencils

Laser Cut stencils offer:

• Clean contours with smooth, burr-free edges
• Excellent geometry, precision, reliability and productivity.
• 100% scan check inspection for all cutting apertures

Material

• Stainless steel grade 304 Full hard Tensile: 1329 N/mm²
  Elongation: 5.0%
  Hardness: 408 HV
• Fine grain (substitute for Nickel alloy) Tensile: = 1000 N/mm²
  Elongation: 5.0%
  Hardness: = 370 HV

Applications

• OptiGuard stencils
  Dimensions: – 23" x 23"; – 23" x 29"; – 29" x 29"
  Thicknesses (µm): 80, 100, 120, 130, 150, 180, 200, 250
• Stencils glued in aluminium frame
  Dimensions: – 22" x 22" (555 x 555 mm); – 23" x 23" (584 x 584 mm); – 29" x 29" (736 x 736 mm); – 400 x 500 mm; – 550 x 650 mm; – 584 x 1200 mm
  Thicknesses (µm): 80, 100, 120, 130, 150, 200
• Stencils for self- tensioning frames
  All types and dimensions
  Thicknesses (µm): 80, 100, 120, 130, 140, 150, 180, 200, 250, 300
• Prototype stencils
  Max dimensions: 200 x 300 mm
• Via fill stencils

End Treatment

• Classic mechanical polish
• Electro-chemical polish
• Nano-Pro Tek coating
